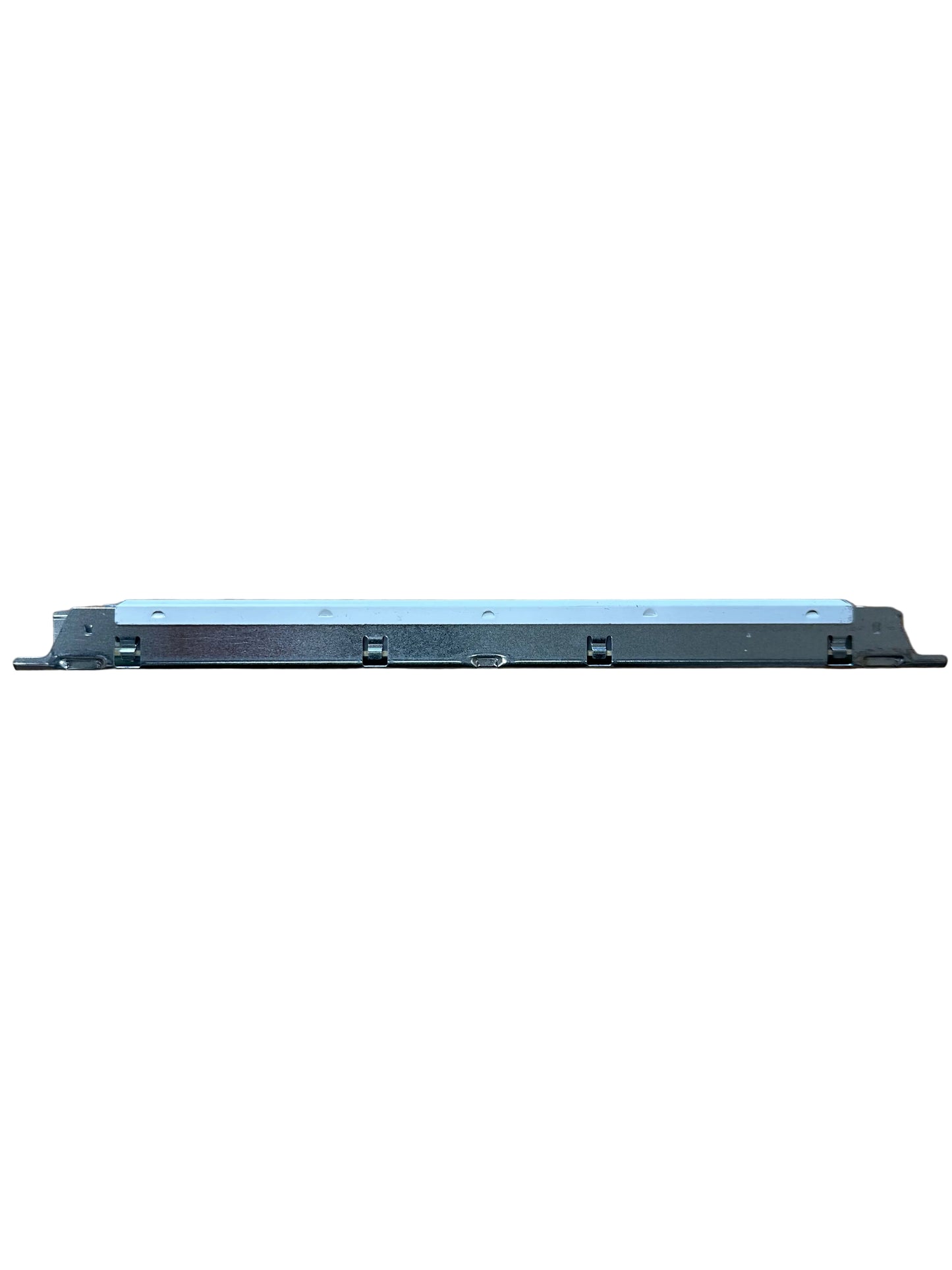

Vossloh Schwabe ECXe400.255 - 186587 - 10-40W 100-400mA Linear LED Driver

Vossloh Schwabe ECXe400.255 - 186587 - 10-40W 100-400mA Linear LED Driver

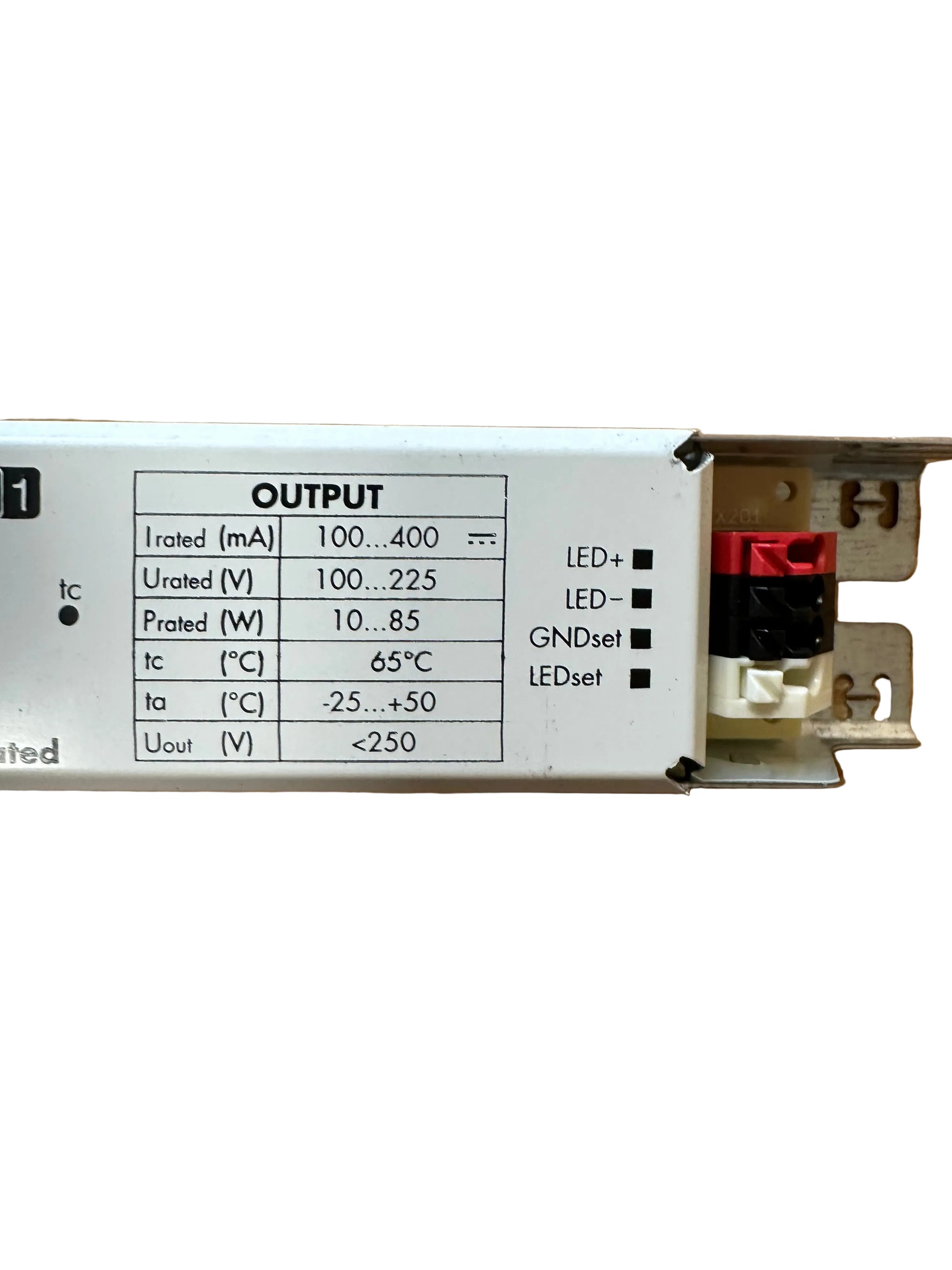

• Selectable current output by secondary side LEDSet terminal.
• The output current can be freely adjusted between 100 mA and 400 mA by using a resistor (according LEDSet standard).
• LEDSet resistor is not included.
• Suitable for central battery system for emergency lighting acc. to EN 50172

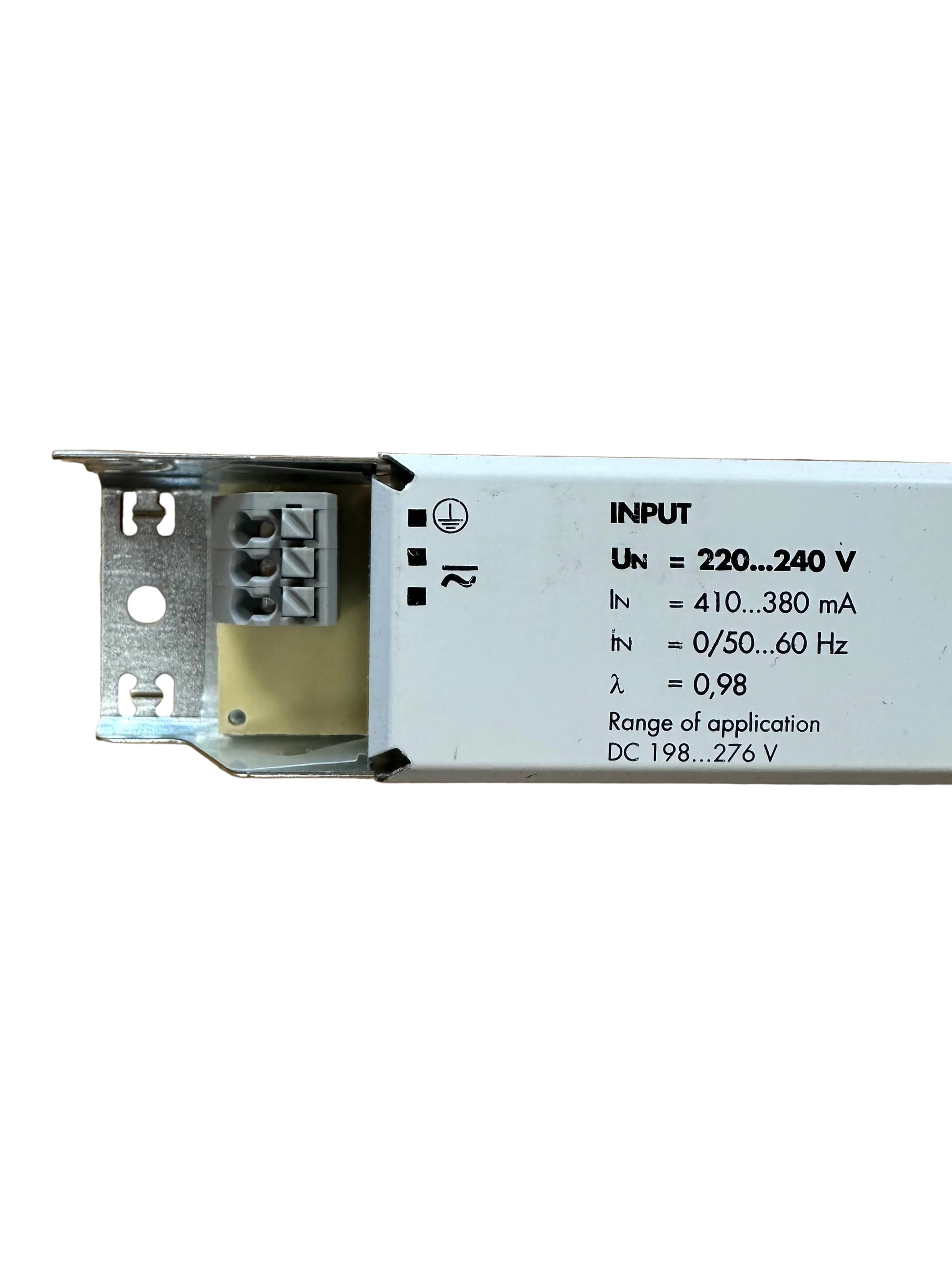

• Mains voltage: 220–240 V ±10%
• Mains frequency: 50–60 Hz
• DC operation: 198–276 V, 0 Hz
• Push-in terminals: 0.2–1.5 mm²
• Power factor at full load >0.98
• Max. working voltage (UOUT): 250 V
• Secondary side switching of LED modules is not allowed.
